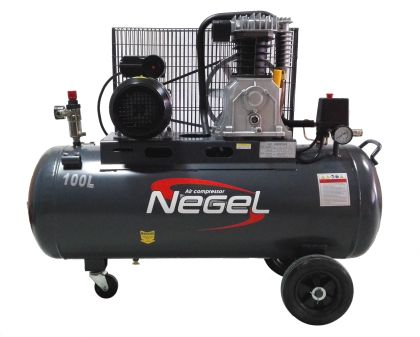

100 l Piston air compressor with belt drive, 51002

100 l Piston air compressor with belt drive, 51002 Normal 0 21 false false false BG X-NONE X-NONE Compressor for high pressure air. The compressor unit body is made of a high-quality cast iron block with honed cylinders and a sub-aluminum alloy space. A powerful electromotor is copper coils, using belt drive to drive the machine at low starting current and power consumption. The cooling of the electric motor is provided by a vent blade coupled to its shaft. Cooling of the unit is provided by the large drive pulley. High quality steel high-grade steel tank for high pressure. Electro-pneumatic switchgear of the highest class ensures the automatic operation of the compressor unit. Safety valve, two-way distributor, one via a reducer valve, pressure gauge, quick coupler for convenient operation. Specification: Power: 2.2 KW / 3 HР / With belt drive Tank capacity: 100L / 26.4 Gal Air Pressure: 8 Bar / 115 Psi Cylinder: Ø 65 x 2 Air Delivery: 230 l/min. / 8.3 Cfm Speed motor: 2800 r.p.m. Size: 1080 × 420 × 810 mm N.W: 76 кг
