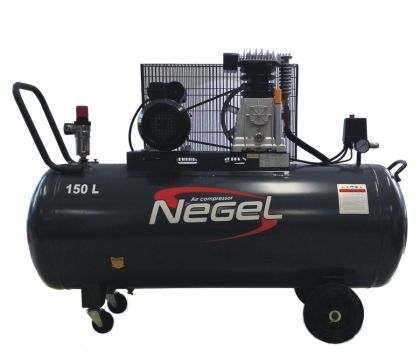

150 l Piston air compressor with belt drive, 51018

150 l Piston air compressor with belt drive, 51018 Compressor for high pressure air. The compressor unit body is made of a high-quality cast iron block with honed cylinders and a sub-aluminum alloy space. A powerful electromotor is copper coils, using belt drive to drive the machine at low starting current and power consumption. The cooling of the electric motor is provided by a vent blade coupled to its shaft. Cooling of the unit is provided by the large drive pulley. High quality steel high-grade steel tank for high pressure. Electro-pneumatic switchgear of the highest class ensures the automatic operation of the compressor unit. Safety valve, two-way distributor, one via a reducer valve, pressure gauge, quick coupler for convenient operation. Technical data: Motor: 3 KW / 4 HР / Belt drive Tank capacity: 150L / 39.6 Gal Air Pressure: 8 Bar / 115 Psi Cylinder: Ø 70 x 2 Air Delivery: 300 л/мин. / 10.8 Cfm Speed: 2800 об./мин. Overal size: 1300 × 400 × 900 mm N.W.: 85 kgs
