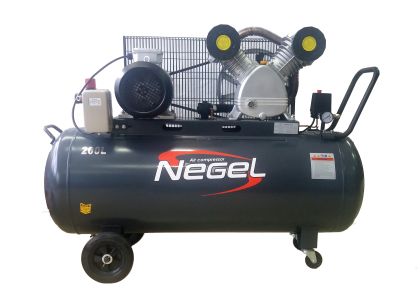

200 l Piston air compressor with belt drive, 51019

200 l Piston air compressor with belt drive, 51019 Compressor for high pressure air. The compressor unit body is made of a high-quality cast iron block with honed cylinders and a sub-aluminum alloy space. A powerful electromotor is copper coils, using belt drive to drive the machine at low starting current and power consumption. The cooling of the electric motor is provided by a vent blade coupled to its shaft. Cooling of the unit is provided by the large drive pulley. High quality steel high-grade steel tank for high pressure. Electro-pneumatic switchgear of the highest class ensures the automatic operation of the compressor unit. Safety valve, two-way distributor, one via a reducer valve, pressure gauge, quick coupler for convenient operation. Specification: Power: 4 KW / 5.5 HР / Belt Drive Tank capacity: 200L / 52.8 Gal Air Pressure: 8 Bar / 115 Psi Cylinder: Ø 90 x 2 Air Delivery: 600 l/min. / 22 Cfm Speed: 2890 rpm Size: 1350 × 510 × 950 mm N.W.: 130 kgs Code: 51019 International shipment available. Please ask for price
