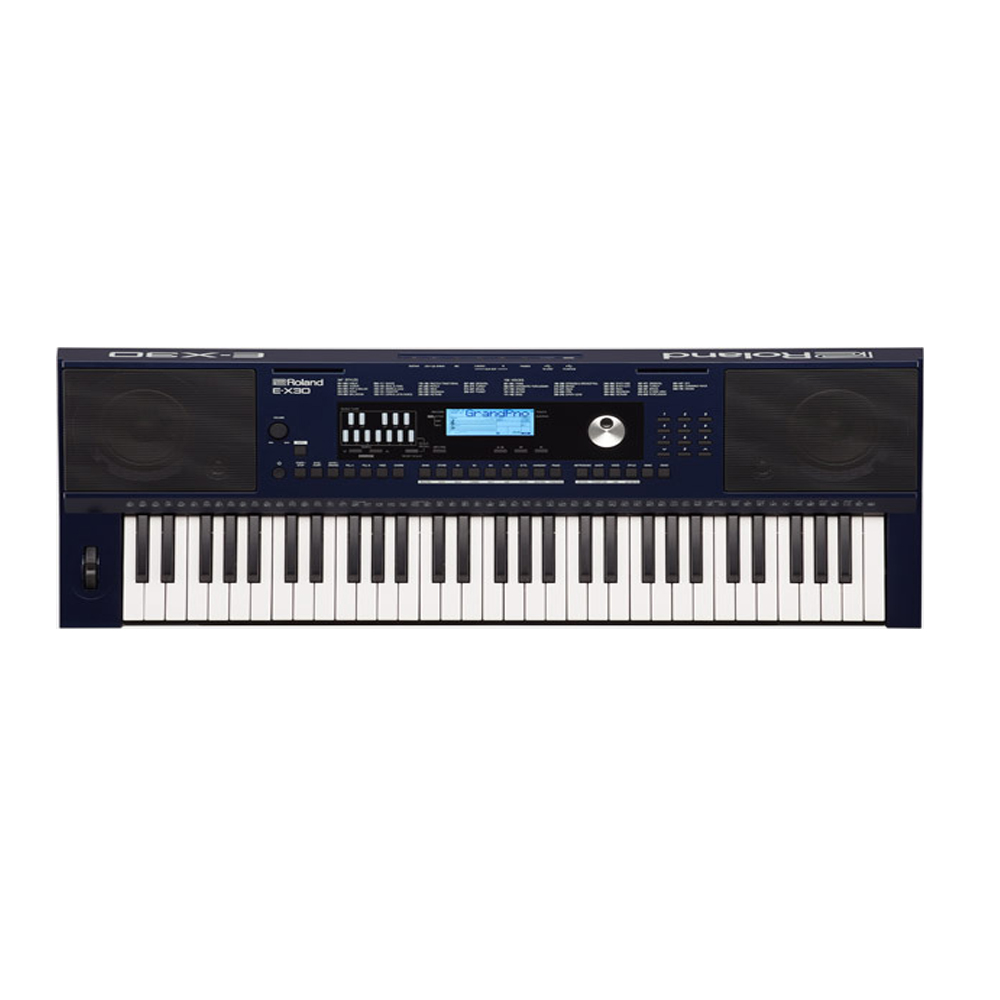

Description E-X30 Arranger Keyboard features: KEYBOARD Keyboard 61 keys (with velocity) SOUND GENERATOR Maximum Polyphony 256 voices Parts 16 parts Wave Memory 128 MB Tones Tones: 433 256 (GM2) Drum Sets: 8 9 (GM2) Effects Reverb: 10 types Chorus: 8 types Transpose -12— 12 (in semitones) Octave -1— 1 ARRANGER Tempo 30—280 Styles 347 styles One Touch Setting 4 settings/styles with Tempo/Tone/Style/Transpose lock functions Controls START/STOP, SYNC START, INTRO/ENDING, FILL A, FILL B, FADE, CHORD SCALE TUNINGS Scale Recall 12 user scale memories User Scale Buttons Instant quarter-tone tuning of each note of a scale (C–B) Adjustable tuning range (-50– 50 cent) for each button Tunings can also be saved to user program memories. MP3 PADS MP3 Pads 12 pads for MP3 playbacker via USB memory METRONOME Beat 0, 2—9 SONG Internal Songs 160 songs Recording 10 songs OTHER Rated Power Output 10 W 10 W Speakers Speakers: 10 cm (4 inches) x 2 Tweeters: 2.5 cm (1 inch) x 2 Controllers Pitch bend wheel Display Custom LCD Connectors PHONES jack: stereo 1/4-inch phone type OUTPUT (L/MONO, R) jacks: 1/4-inch phone type MIC INPUT jack: 1/4-inch TRS phone type SUSTAIN jack: 1/4-inch phone type USB Computer port: USB B type USB Memory port: USB A type DC IN jack Power Supply AC adaptor or Alkaline battery (AA, LR6) x 6 *Carbon-zinc batteries cannot be used. Battery Life for Continuous Use Alkaline batteries (AA, LR6): Approximately 2 hours *This figure will vary depending on the actual conditions of use. Current Draw 2 A Accessories Owner’s Manual Leaflet “USING THE UNIT SAFELY” AC adaptor Music rest Options (sold separately) Pedal switch: DP series SIZE AND WEIGHT Width 956 mm 37-11/16 inches Depth 360 mm 14-3/16 inches Height 133 mm 5-1/4 inches Weight (excluding AC adaptor) 6.2 kg 13 lbs 11 oz ENQUIRY This contact form is available only for logged in users.
