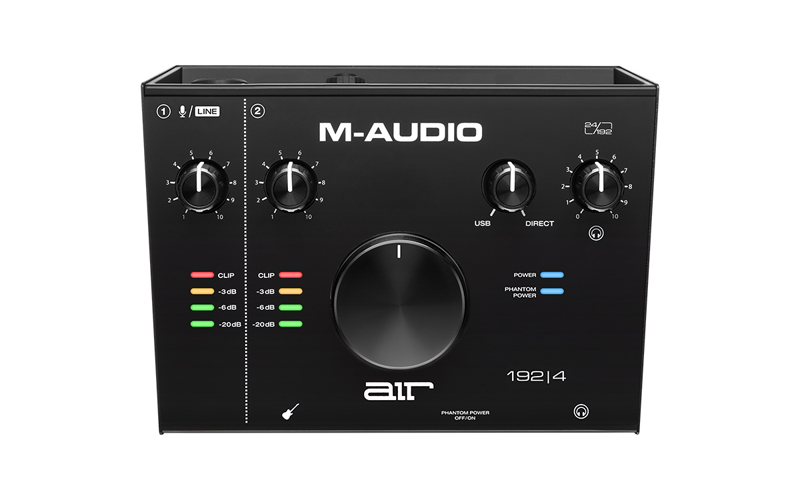

Description M-AUDIO AIR 192|4 Audio Interface : Mic Input (balanced XLR) Frequency Response 20 Hz – 20 kHz ( 0.1 dB) Dynamic Range 104 dB (A-weighted) Signal-to-Noise Ratio 104 dB ( 1.0 dBu, A-weighted) THD N 0.003% Preamp EIN -128 dBu (max. gain, 150 Ω source, A-weighted) Max Input Level 1.5 dBu Gain Range 55 dB Line Input 1 (balanced 1/4″ [6.35 mm] TRS) Frequency Response 20 Hz – 20 kHz ( 0.05 dB) Signal-to-Noise Ratio 101 dB (1 kHz, 4 dBu, A-weighted) THD N 0.003% Gain Range 55 dB Line Input 2 (unbalanced 1/4″ [6.35 mm] TS) Frequency Response 20 Hz – 20 kHz ( 0.05 dB) Dynamic Range 100 dB (A-weighted) Signal-to-Noise Ratio 102 dB ( 4 dBu, A-weighted) THD N 0.004% Max Input Level 6 dBu Input Impedance 1 MΩ Gain Range 24 dB Main Outputs, L and R (balanced, differential 1/4″ [6.35 mm] TRS Frequency Response 20 Hz – 20 kHz ( 0.06 dB) Dynamic Range/Signal-to-Noise Ratio 102 dB (A-weighted) THD N 0.005% Max Output Level 7 dBu (1 kHz, -1 DBFS Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS) THD N 0.005% (A-weighted) Output impedance 10Ω (A-weighted) General Power USB bus-powered Dimensions (W x D x H) 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm) Weight 2.0 Ibs. 0.9 kg. ENQUIRY This contact form is available only for logged in users.
