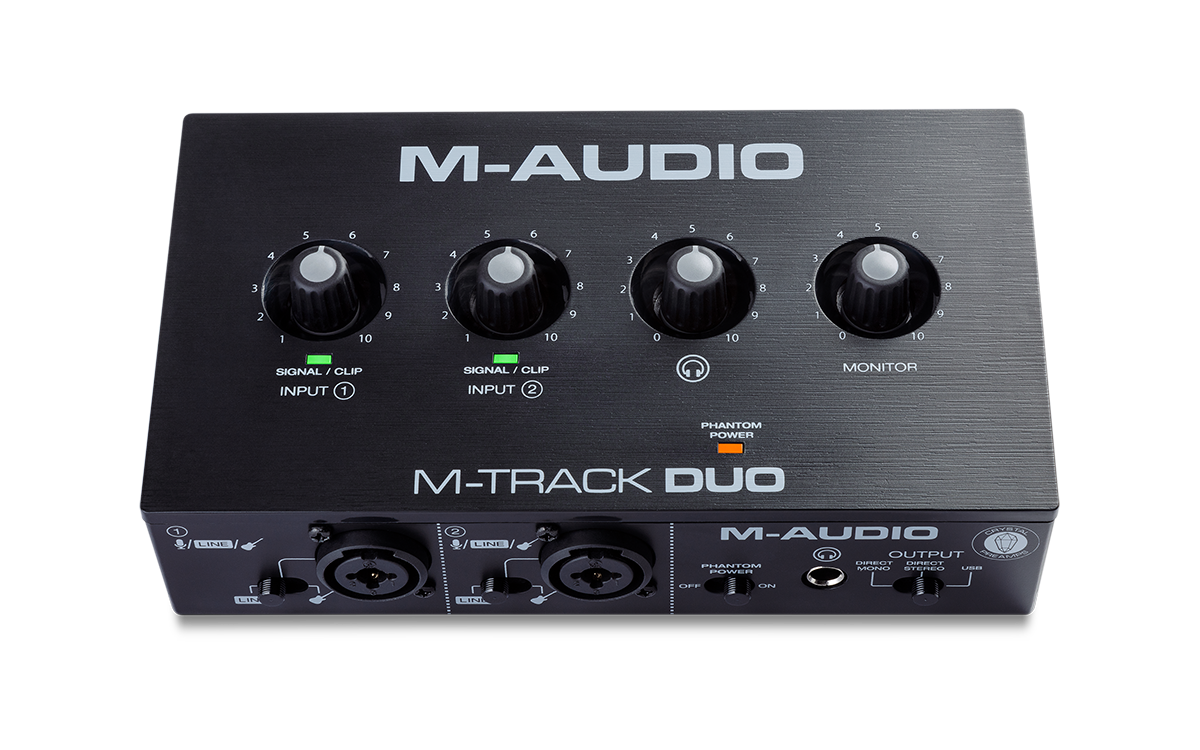

Description M-AUDIO M-TRACK DUO Audio Interface : Mic Input (balanced XLR) Frequency Response 20 Hz – 20 kHz ( 0.1 dB) Signal-to-Noise Ratio 109 dB (A-weighted) THD N 0.003% (min. gain, 0 dBu out, A-weighted) Preamp EIN -128 dBu (max. gain, 40 Ω source, A-weighted) Gain Range Direct Mono: 0 dB to 54 dB Direct Stereo: 6 dB to 60 dB Line Input (balanced 1/4″ [6.35 mm] TRS) Frequency Response 20 Hz – 20 kHz ( 0.1 dB) Sensitivity -43 dBu THD N 0.002% (min. gain, 0 dBu out, A-weighted) Gain Range Direct Mono: -10 dB to 44 dB Direct Stereo: -4 dB to 50 dB Instrument Input (unbalanced 1/4″ [6.35 mm] TS) Frequency Response 20 Hz – 20 kHz ( 0.1 dB) THD N 0.005% (min. gain, 0 dBu output, A-weighted) Input Impedance 1 MΩ Gain Range Direct Mono: -10 dB to 44 dB Direct Stereo: -4 dB to 50 dB Main Outputs, L and R (impedance-balanced 1/4″ [6.35 mm] TRS Frequency Response 20 Hz – 20 kHz ( 0.1 dB) Signal-to-Noise Ratio 109 dB (A-weighted) THD 0.002% ( 0 dBu out, A-weighted) Max Output Level 4 dBu Headphone Output (1/4” [6.35 mm] TRS) Power 60 mW/Ch, 32 Ω Frequency Response 20 Hz – 20 kHz ( 0.5 dB) THD N 0.02% (A-weighted) Signal-to-Noise Ratio 100 dB (A-weighted) Software Software Bundle included MPC Beats, AIR Music Tech Electric, Bassline, and TubeSynth, Revalver guitar amp plugin and 80 AIR plugin effects. ENQUIRY This contact form is available only for logged in users.
