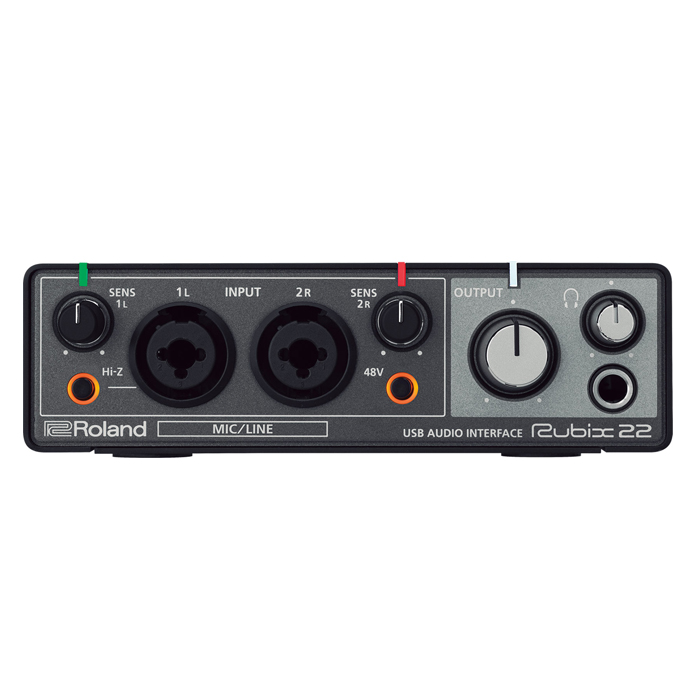

Description Roland Rubix22 USB Audio Interface : Number of Audio Record/Playback Channels Record: 2 channels Playback: 2 channels Signal Processing PC interface: 24 bits AD/DA conversion: 24 bits Sampling Frequency AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz Interface Hi-Speed USB MIDI IN, OUT Connectors INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: 48 V, 6 mA Max *1) INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced) PHONES jack: Stereo 1/4-inch phone type OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced) MIDI (IN, OUT) connectors USB port: USB Type B DC 5V port: USB Type micro B *1 Current value per channel. *2 INPUT 1L supports high impedance Controllers SENS 1L, 2R knobs Hi-Z switch 48V switch OUTPUT knob PHONES knob POWER SOURCE switch DIRECT MONITOR switch GROUND LIFT switch Indicator Level indicators (1L, 2R) POWER indicator Hi-Z indicator 48V indicator Nominal Input Level INPUT (1L, 2R) connectors (XLR type): -60– -12 dBu INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44– 4 dBu Maximum Input Level INPUT (1L, 2R) connectors (XLR type): 2 dBu INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 18 dBu Nominal Output Level OUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced) Maximum Output Level OUTPUT (1L, 2R) jacks: 8 dBu (impedance balanced) PHONES Maximum Output Power 20 mW 20 mW (L R, 47 ohms load) Headroom 14 dB Input Impedance INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced) INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced) INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater *3 When the Hi-Z is turned on Output Impedance OUTPUT (1L, 2R) jacks: 2 k ohms (balanced) PHONES jack: 47 ohms Residual Noise Level INPUT (1L, 2R) –> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.) Dynamic Range AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.) DA block OUTPUT (1L, 2R) jacks: 109 dB typ. Power Supply Supplied from the computer via USB, DC 5V Current Draw 500 mA Operating System Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10 Apple Mac OS X 10.10 or later Apple iOS 9 or later Dimensions 145 (W) x 165 (D) x 46 (H) mm 5-3/4 (W) x 6-1/2 (D) x 1-13/16 (H) inches Weight (main unit only) 1.0 kg 2 lbs 4 oz ENQUIRY This contact form is available only for logged in users.
