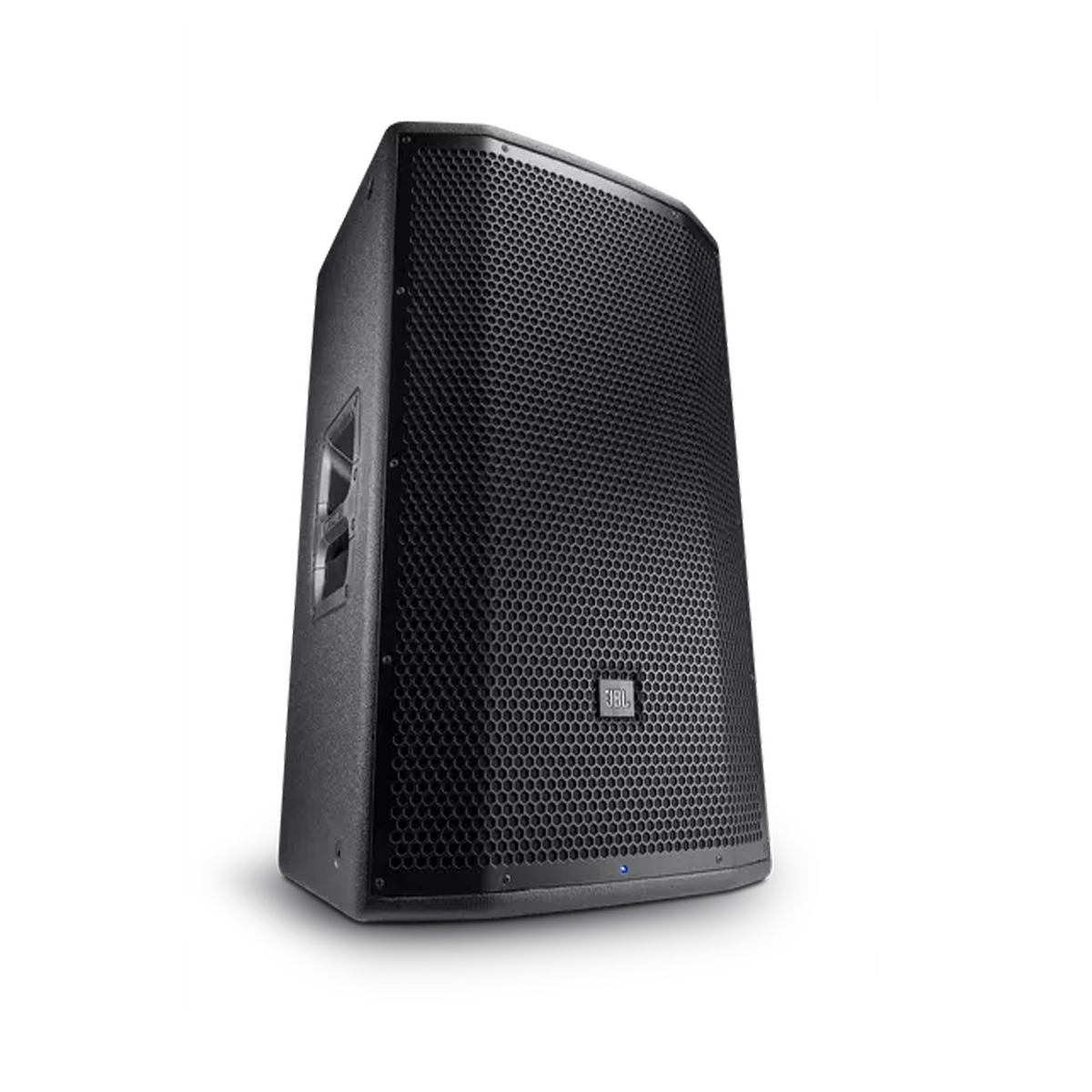

Description JBL PRX815 Powered PA Speakers : System Type : Self Powered 15”, two-way, bass-reflex Maximum SPL (1m) : Normal: 137 dB Boost: 137 dB Frequency Range (-10dB) : Main: 42.9 Hz – 19.5 kHz Monitor: 43.6 Hz – 19.3 kHz Frequency Response (±3 dB) : Main: 58.1 Hz – 17.2 kHz Monitor: 60.7 Hz – 16.7 kHz Signal Indicators : Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal : Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio Dynamic Control (Input) : dbx Type IV™ limiter circuit Crossover Frequency : 2 kHz Design : Highly efficient Class-D amplifier Power Rating : 1500W (750W x 2) AC power input : 100V – 240V ~ 50/60 Hz LF Driver : 1 x JBL 275G (15 in) woofer HF Driver : 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver Coverage Pattern : 90° x 50° nominal Directivity Index (DI) : 10.2 dB Directivity Factor (Q) : 10.4 Suspension / Mounting : Dual 36 mm pole socket, 12 x M10 Suspension Points Transport : 1 x injection molded handle with backing cup Finish : Obsidian DuraFlex™ finish Grille : Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. Mic Inputs : 2 Phantom Power : No EQ : User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application Effects : 25 parametric EQ’s and speaker delay Inputs : 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input Input Impedance : 20K Ohms (balanced), 10K Ohms (unbalanced) Outputs : 1 x XLR (mix out) Enclosure : Asymmetrical, 18 mm, Duraflex coated plywood Dimensions (H x W x D) : 599mm x 385mm x 341mm (23.6in x 15.1in x 13.4in) ENQUIRY This contact form is available only for logged in users.
